Description

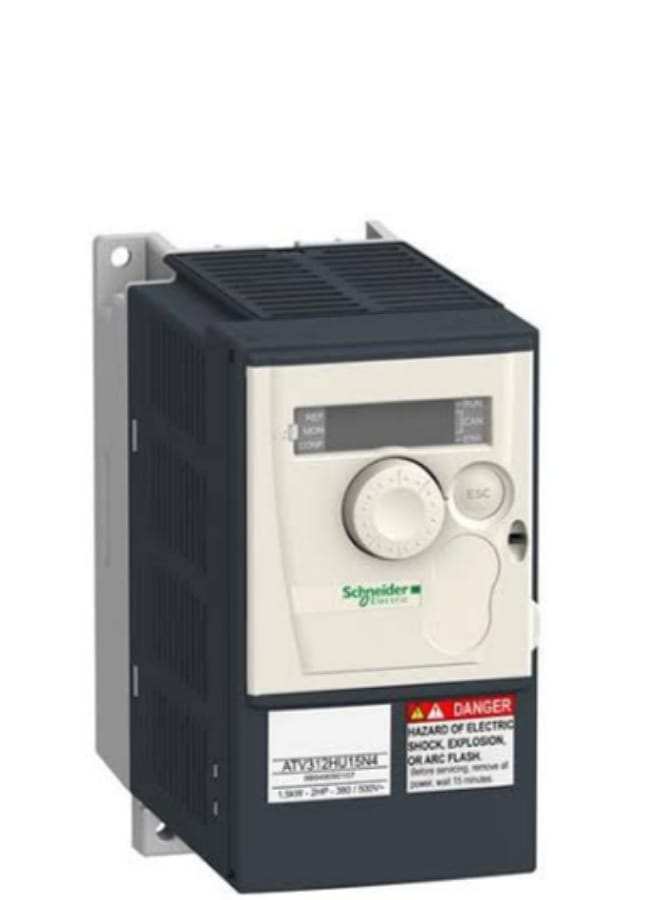

| Range of product | Altivar 312 |
|---|---|
| Product or component type | Variable speed drive |
| Product destination | Asynchronous motors |
| Product specific application | Simple machine |
| Assembly style | With heat sink |
| Component name | ATV312 |
| Motor power kW | 1.5 kW |
| Motor power hp | 2 hp |
| [Us] rated supply voltage | 380…500 V – 15…10 % |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | 3 phases |
| Line current | 6.4 A at 380 V, Isc = 5 kA 4.8 A at 500 V |
| EMC filter | Integrated |
| Apparent power | 4.2 kVA |
| Maximum transient current | 6.2 A for 60 s |
| Power dissipation in W | 61 W at nominal load |
| Speed range | 1…50 |
| Asynchronous motor control profile | Factory set : constant torque Sensorless flux vector control with PWM type motor control signal |
